Feature

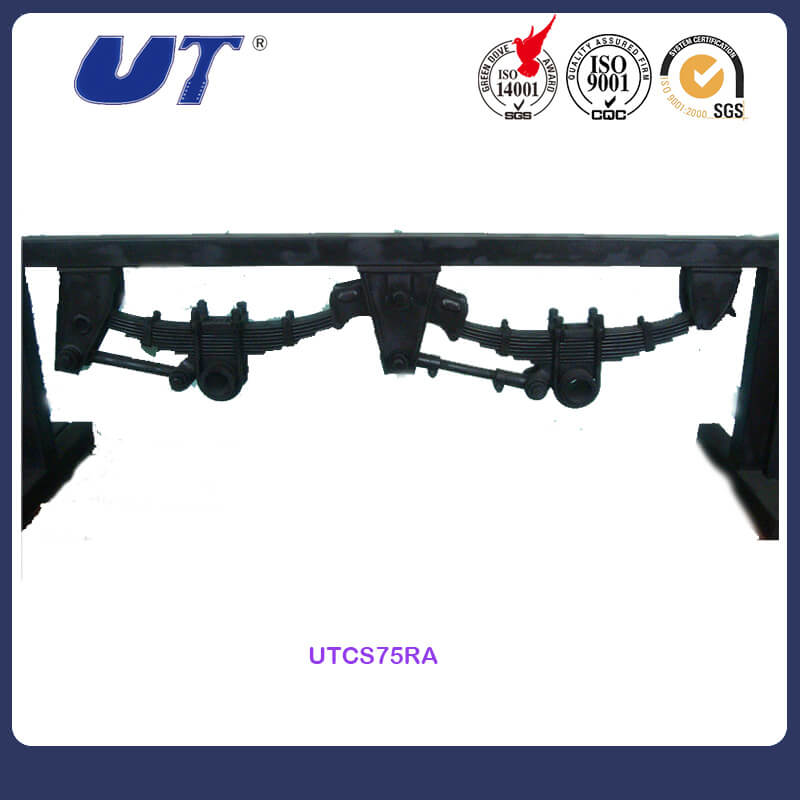

York/YTE type mechanical Suspension ( Both overslung type and underslung type)

1. Overlung and underslung type

2. The leaf spring could be 75mm and 90mm

3. The axle beam could round and square ,the size is 5’’ and 6’’

4. Axle spacing: 1300m, 1310mm, 1360mm ,1540mm

5. Axle beam size: 5’’ and 6’’ / 127mm and 150mm

6. One-axle, tandem, tri-axle are optional

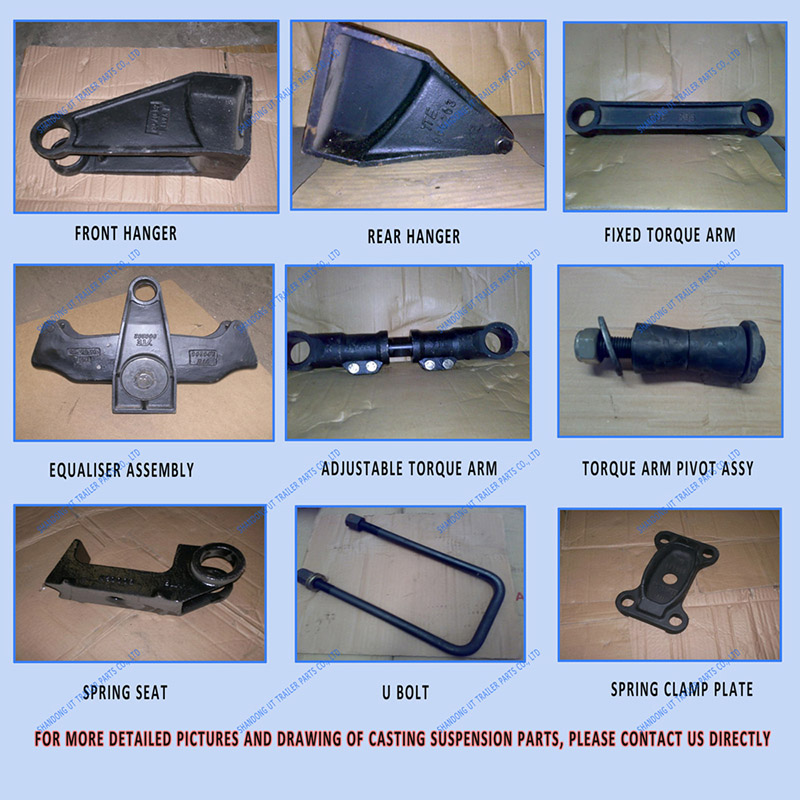

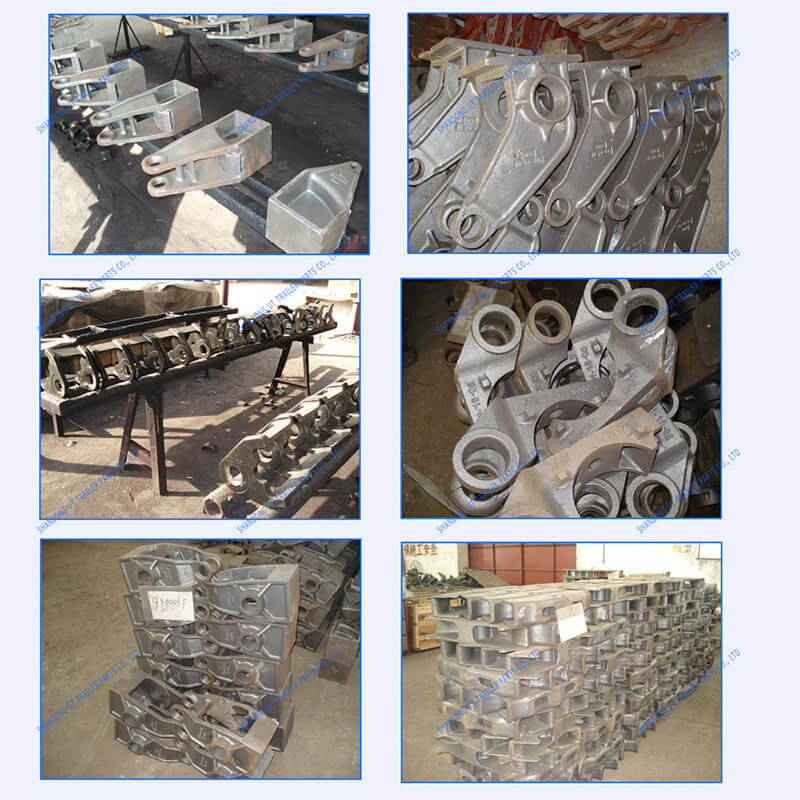

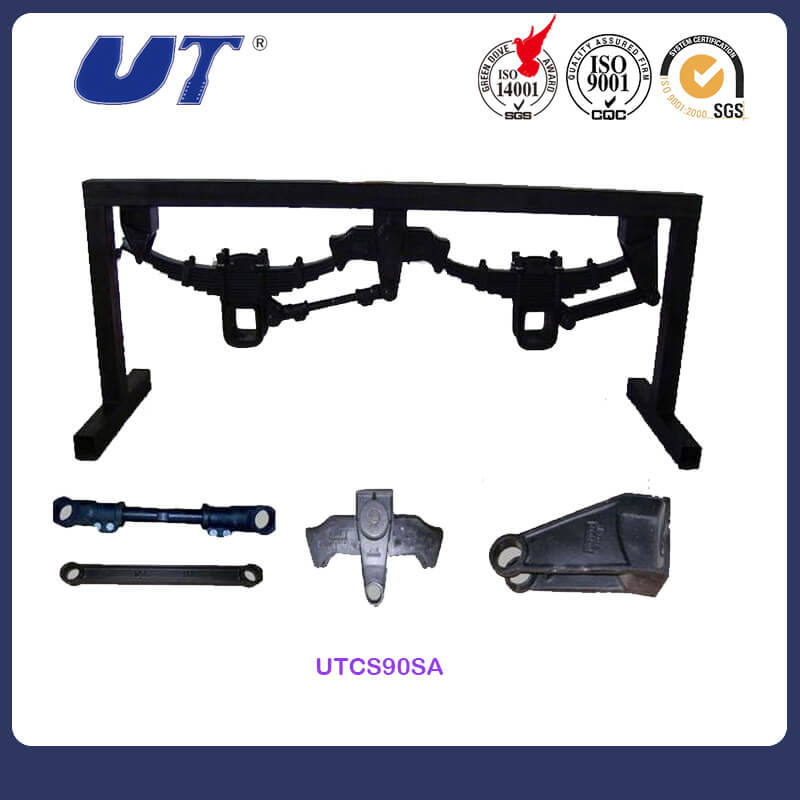

We as well can supply all the series of York design suspension parts, such as 900201 front hanger, 900203 rear hanger, 900202 equalizer hanger, 900206 equalizer, 770706 leaf spring, etc.

IMPORTANT REMARK: we can produce fully according with your samples and drawings.

parameter

单轴载重(Capacity):16T Per axle


板簧(Leaf Spring)90mmx16mmx10 pcs

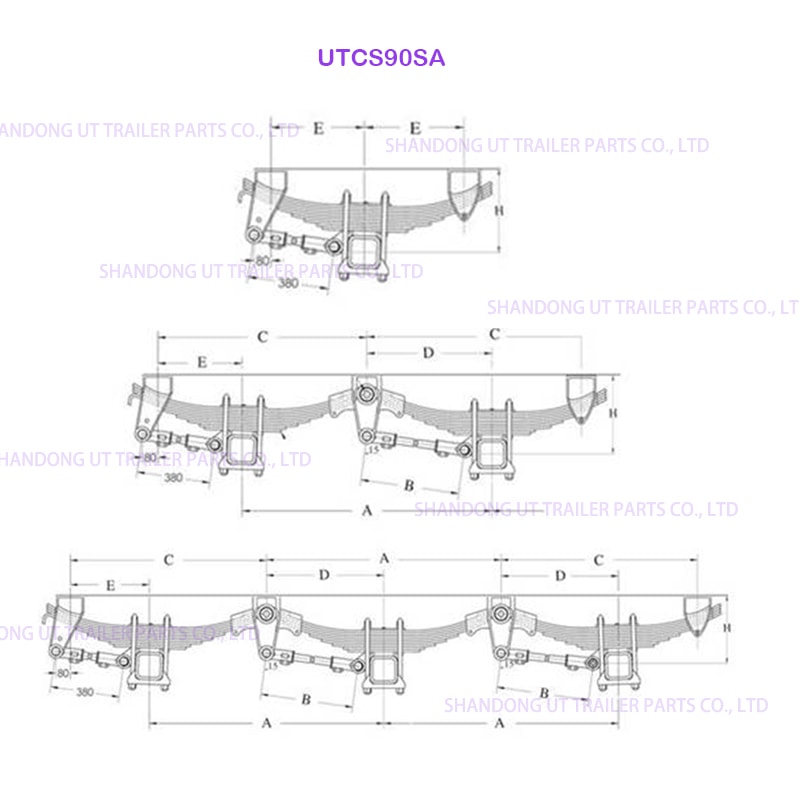

安装尺寸如下表 Dimension:


Item

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

H(mm)

Axle qty

1

1300

495

1088

650

438

500

2

2

1300

495

1088

650

438

525

2

3

1300

495

1088

650

438

550

2

4

1300

495

1088

650

438

570

2

5

1240

470

1058

620

438

500

2

6

1240

470

1058

620

438

525

2

7

1240

470

1058

620

438

550

2

8

1240

470

1058

620

438

570

2

9

1550

620

1208

775

438

500

2

10

1550

620

1208

775

438

525

2

11

1550

620

1208

775

438

550

2

12

1550

620

1208

775

438

570

2

13

1300

495

1088

650

438

500

3

14

1300

495

1088

650

438

525

3

15

1300

495

1088

650

438

550

3

16

1300

495

1088

650

438

570

3

17

1240

470

1058

620

438

500

3

18

1240

470

1058

620

438

525

3

19

1240

470

1058

620

438

550

3

20

1240

470

1058

620

438

570

3

21

1550

620

1208

775

438

500

3

22

1550

620

1208

775

438

525

3

23

1550

620

1208

775

438

550

3

24

1550

620

1208

775

438

575

3

25

438

500

1

26

438

525

1

27

438

550

1

28

438

575

1

29

438

500

1

30

438

525

1

31

438

550

1

32

438

575

1

33

438

500

1

34

438

525

1

35

438

550

1

36

438

575

1


注:可按照客户要求专门设计制造 Note: Optional size is available
