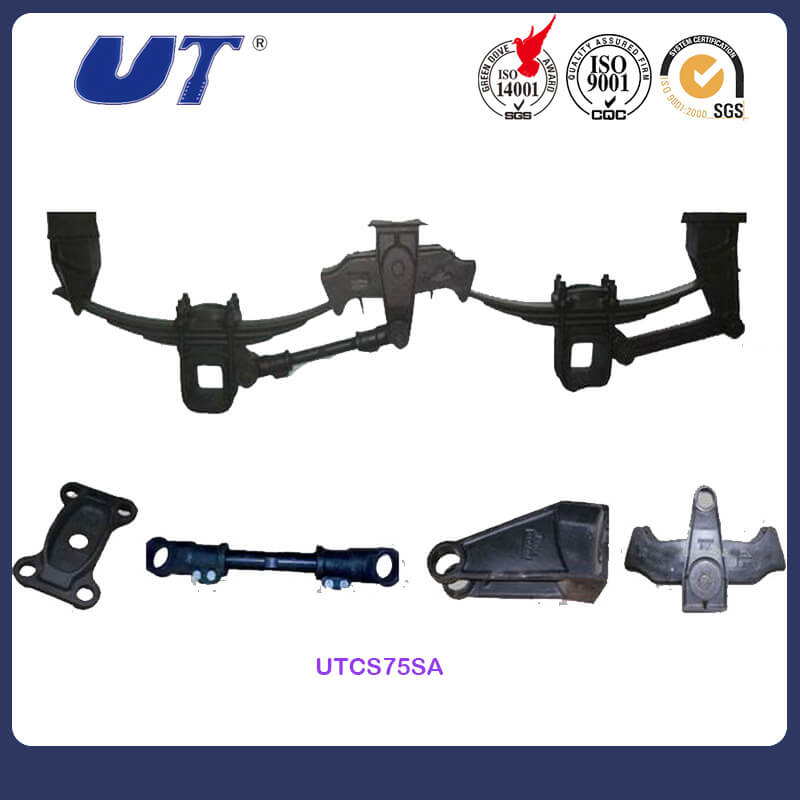

75 Series (Square  Axle Beam)
  • 75 Series (Square  Axle Beam)
  • 75 Series (Square  Axle Beam)

75 Series (Square Axle Beam)

We're here to help:Easy ways to get the answers you need

Feature

York/YTE type mechanical Suspension ( Both overslung type and underslung type)



1. Overlung and underslung type

2. The leaf spring could be 75mm and 90mm

3. The axle beam could round and square ,the size is 5’’ and 6’’

4. Axle spacing: 1300m, 1310mm, 1360mm ,1540mm

5. Axle beam size: 5’’ and 6’’ / 127mm and 150mm

6. One-axle, tandem, tri-axle are optional

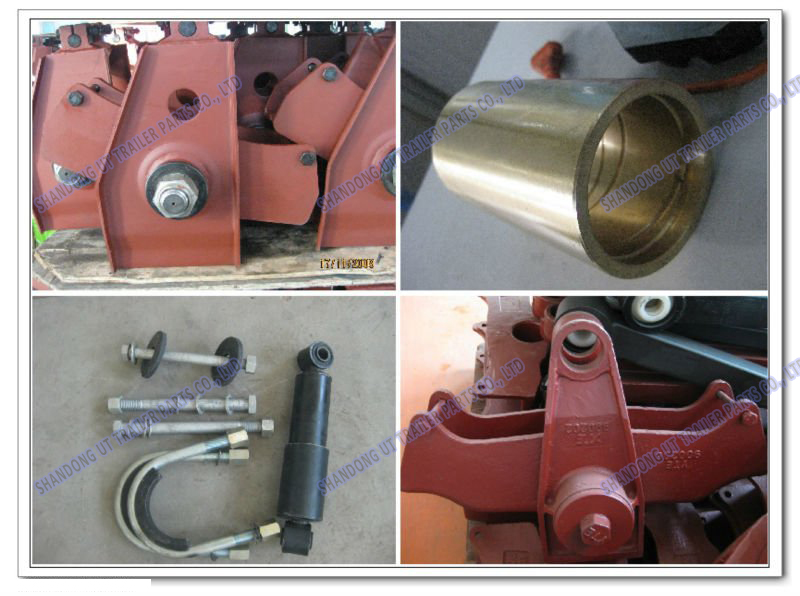

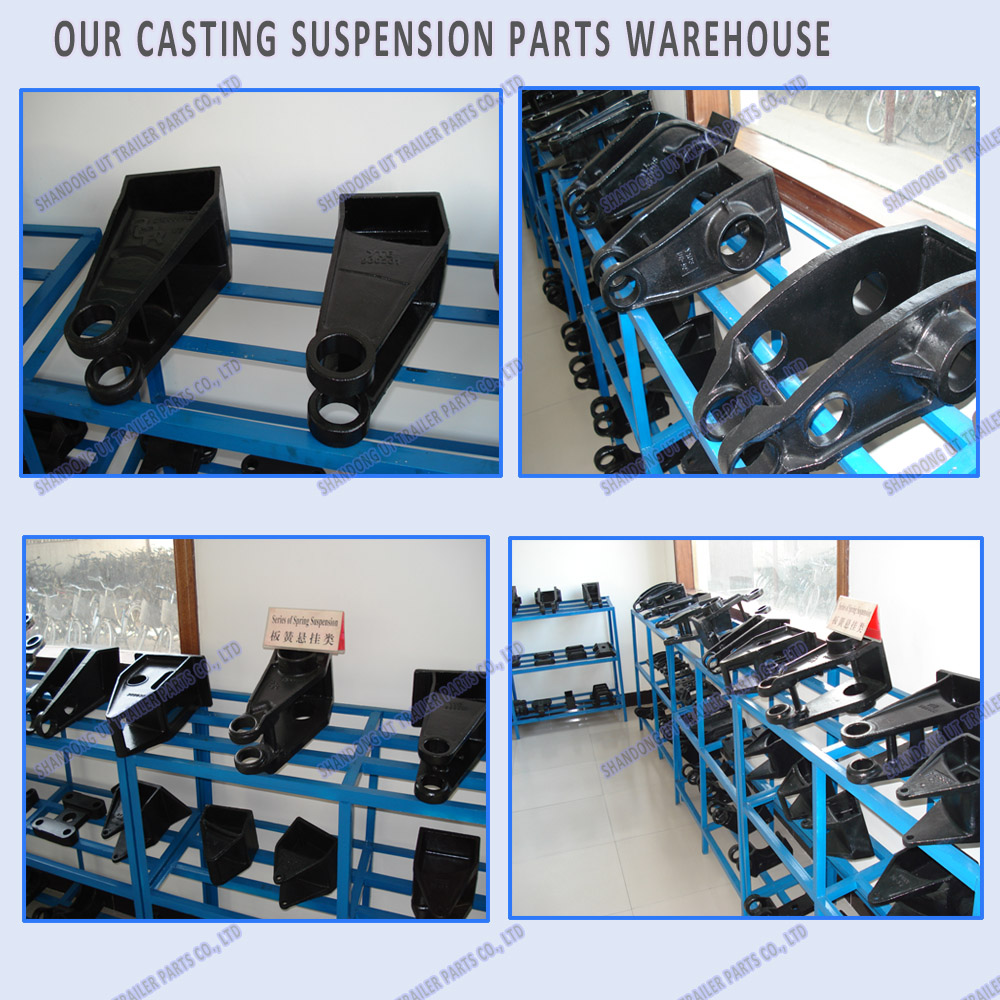

We as well can supply all the series of York design suspension parts, such as 900201 front hanger, 900203 rear hanger, 900202 equalizer hanger, 900206 equalizer, 770706 leaf spring, etc.



IMPORTANT REMARK: we can produce fully according with your samples and drawings.

parameter

单轴载重(Capacity):12T Per axle


板簧(Leaf Spring)75mmx13mmx8 pcs

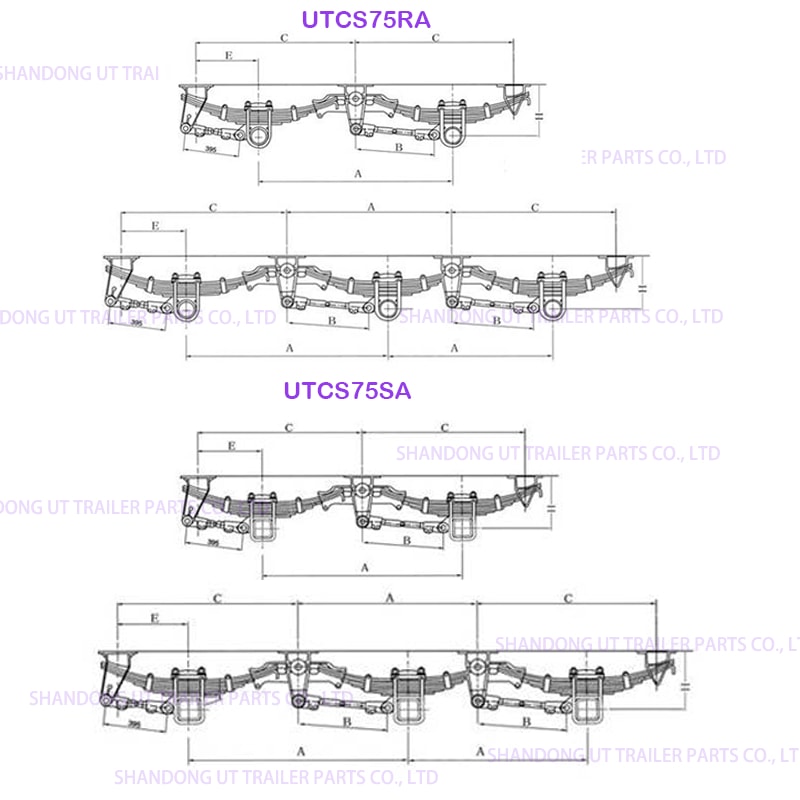

安装尺寸如下表 Dimension:


Item

A(mm)

B(mm)

C(mm)

E(mm)

H(mm)

Axle qty

1

1360

550

1118

438

385/400/425

2/3

2

1315

520

1095

438

400/425/450/475

2/3

3

1384

565

1130

438

400/425/450/475

2/3

4

1232

470

1054

438

400/425/450/475

2/3

5

1360

550

1118

438

395/420/445/470

2/3


注:可按照客户要求专门设计制造         Note: Optional size is available



inquiry

Contact us now if you have any question about our company and products. Any of your inquiry and suggestion will be highly appreciated.We will keep your information completely private.
