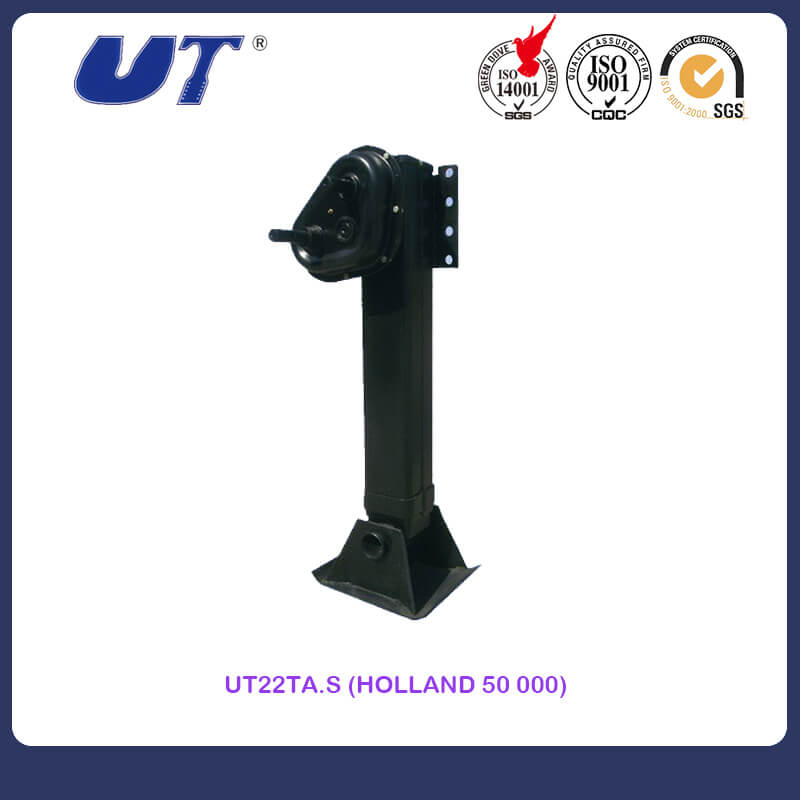

UT22TA.S(22 TONS OUTBOARD)

We're here to help:Easy ways to get the answers you need

Feature

Landing gear for semi-trailers, full trailers and trucks

Operation: both Single-Side Operation and Double-Side Operation type.

Gearbox type: both Gearbox inside and Gearbox outside type

Sand shoe: T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.

Capacity: 5ton, 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.

Design: Common type, Similar to FUWA, JOST, HOLLAND,YORK etc

Production Capacity: 3000 pairs per month

Package: By pallet, By wooden case or as your requirement

Main Market: South-east Asia, South America, Africa, Australia, Russia, Middle East, etc



UT LANDING GEAR FEATURES:


1.     Lead screw is rolled forming from extra-duty feature steel.

2.     Gears are made of high grade forging steel.

3.     Dimension of connection meets with TTMA.AAR specification.

4.     Lead screw nut applies floating construction, easier for lift and longer persistence for use.

5.     Special dimension could be accepted after confirmation.

6.     Static load, lift test and drop test accord with ABS specification.

parameter

Model Number

UT22TA.S

Static Load CapacityT

60

Lifting CapacityT

22

High Gearmm

6

Low Gearmm

0.79

Travel Maxmm

430

Assembly heightmm

788

Standard Weightkg

87
