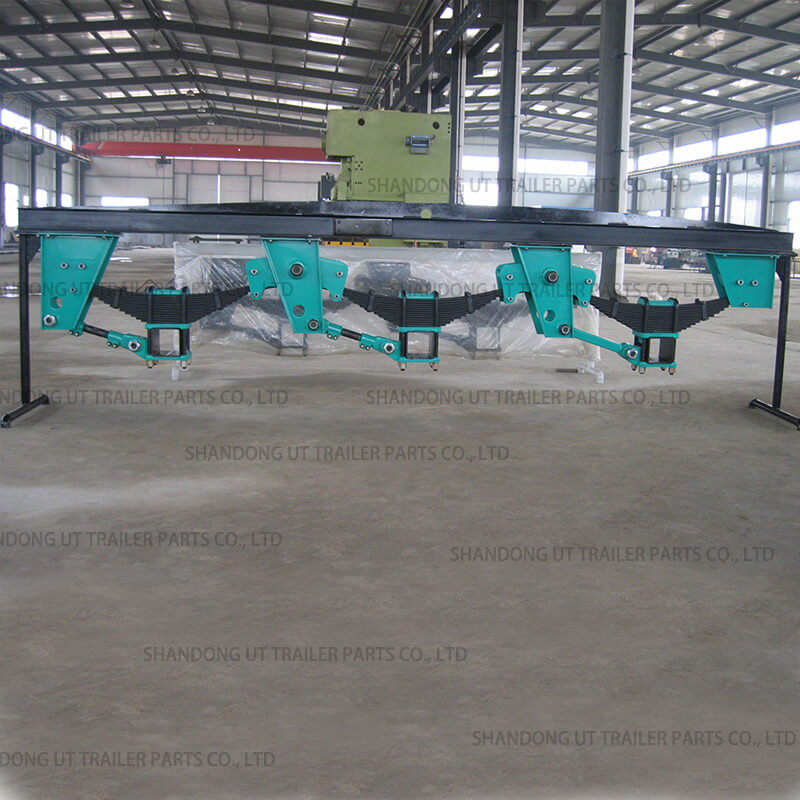

12/14/16TONS SAF DESIGN SUSPENSION
  • 12/14/16TONS SAF DESIGN SUSPENSION
  • 12/14/16TONS SAF DESIGN SUSPENSION
  • 12/14/16TONS SAF DESIGN SUSPENSION

12/14/16TONS SAF DESIGN SUSPENSION

We're here to help:Easy ways to get the answers you need

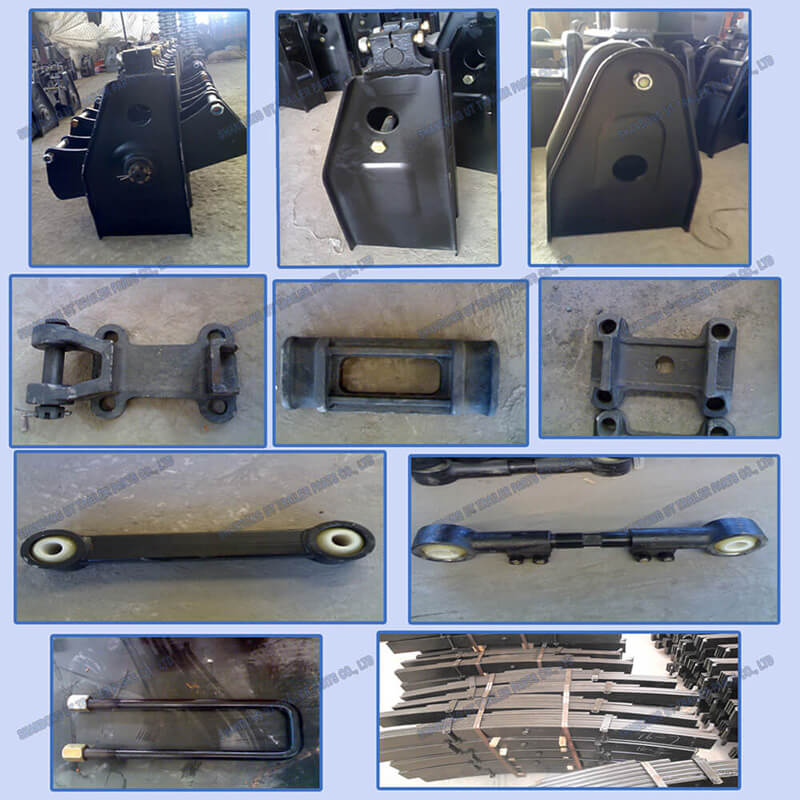

Feature

1) Hanger thickness: 4mm, 4.5mm, 6mm, 8mm or 10mm

2) King pin: 50mm, 60mm, 70mm

3) Suspension height: 130-350mm

4) Color: black/ red/orange/ by customer

5) Material: Q235B

6) Spring width: 75mm, 90mm, 100mm, 120mm

7) Axle spacing: 1310mm, 1360mm

8) No. Of spring piece/spring quantity is optional

9) Axle load is optional

10) Size: design as your requirement

11) Max payload: 55T for complete suspension

12) Axle beam: square/ round

13) Fishing: painting or galvanizing

14) Packing details: wooden tray or other ways according to your requirements

IMPORTANT REMARK: we can produce fully according with your samples and drawings.

Following suspensions are available:

1) Single point suspension

2) 2-axle suspension

3) 3-axle suspension

4) 4-axle suspension

Following axles are waiting for you to choose:

1) 11 ton capacity axle

2) 12 ton capacity axle

3) 13 ton capacity axle

4) 14 ton capacity axle

5) 16 ton capacity axle

parameter

悬挂型号

Suspension Model

规格

Size

车轴

Axle type

H(mm)

Mount Height

轴距(mm)

Wheel base

板簧

Leaf Spring

载重(ton)

Capacity

A空载(mm)

Empty Load

B满载(mm)

Full Load

UTGS1002 01

单轴

Single Axle

150x150

190

-

100mmx12mmx11pcsx1170mm

12x1

485

455

100mmx12mmx12pcsx1170mm

14x1

497

467

100mmx12mmx14pcsx1170mm

16x1

521

492

UTGS1002 02

双轴

Tandem Axle

150x150

190

1360

100mmx12mmx11pcsx1170mm

12x2

485

455

100mmx12mmx12pcsx1170mm

14x2

497

467

100mmx12mmx14pcsx1170mm

16x2

521

492

UTGS1002 03

三轴

Tri-axle

150x150

190

1360

100mmx12mmx11pcsx1170mm

12x3

485

455

100mmx12mmx12pcsx1170mm

14x3

497

467

100mmx12mmx14pcsx1170mm

16x3

521

492
